Olflex 191CY – UL / CSA Approved Control Cable

...
Please contact for availability

£0.00 – £71,047.64 ex VAT

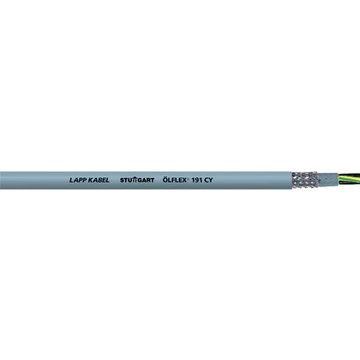

Lapp ÖLFLEX®  191CY  | UL / CSA Approved Control Cable

UL Approved Screened Control Cable to UL21098

Fine-wire strand made of bare copper wires
PVC core insulation
Cores twisted in layers
PVC inner sheath, grey
Tinned-copper braiding
PVC outer sheath, high oil-resistance, grey (similar to RAL 7001)

UL AWM Style 21098 – CSA AWM I A/B II A/B

IEC 60332-2  , UL1581 CSA 1061

PRODUCT INFORMATION
SKU: N/A Categories: , , Tags: , , , , , ,

Description

Lapp ÖLFLEX®  191CY - UL / CSA Approved Control Cable

Lapp  ÖLFLEX® 191 CY

  • High electrical performance due to 4 kV test voltage
  • Multifunctional application possibilities

Application range

  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
  • In EMC-sensitive environments
    (electromagnetic compatibility)
  • Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
  • For fixed installation under medium mechanical load conditions, and applications with occasional flexing at free, non-continuously recurring movement without tensile load or compulsory guidance
  • Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 Ed. 2015: please see the catalogue appendix table T29

Product features

  • Flame-retardant according to IEC 60332-1-2
    and UL 1581 §1061 Cable Flame Test
  • Oil-resistant according to EN 50363-4-1: TM5
  • High degree of screening
    low transfer impedance
    (max. 250 Ω/km at 30 MHz)

Norm references / Approvals

  • UL AWM Style 21098
    CSA AWM I A/B II A/B
  • Multi-standard cables have conductor strands with nominal sizes in mm² or AWG/kcmil.

Additional information

Weight N/A
Cores

3, 4, 5, 7, 12, 18, 25
Conductor Size

0.75mm, 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm
Reel Size

50Mtrs, 75 Mtrs, 100Mtrs, 250Mtrs, 500Mtrs, Over 500 Call Us
