CY High Flex Dynamic Cable | Olflex FD810CY | PVC

    Home / PVC Flex / CY High Flex Dynamic Cable | Olflex FD810CY | PVC
...
Please contact for availability

£0.00 – £12,893.78 ex VAT

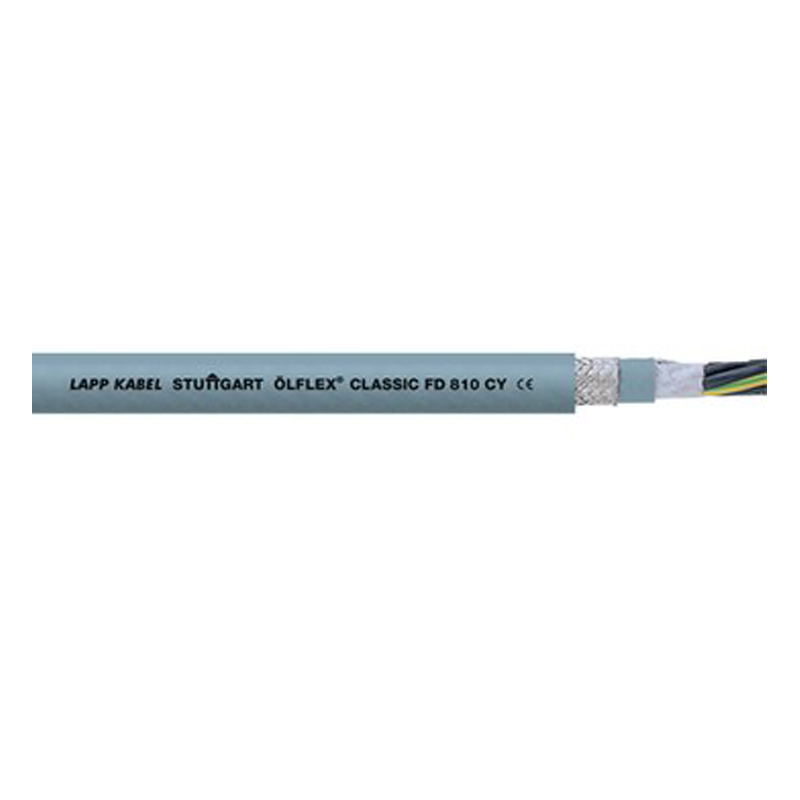

ÖLFLEX® FD810CY |  CY  High Flex Dynamic Cable PVC

Highly flexible, shielded control cable with PVC core insulation and PVC inner and outer sheath

ÖLFLEX® CLASSIC FD 810 CY – shielded power and control cable for versatile use in power chains.

Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in layers with short lay lengths
PVC inner sheath, grey
Tinned-copper braiding
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)

PRODUCT INFORMATION
SKU: N/A Categories: , , , , Tags: , , , , , , ,

Description

ÖLFLEX® FD810CY | CY High Flex Dynamic Cable PVC

 ÖLFLEX® FD810CY Benefits

Tried-and-tested and reliable
Cost-effective solution
Additional robustness thanks to inner sheath
Copper screening complies with EMC requirements and protects against electromagnetic interference

Application range

In power chains or moving machine parts
Suitable for use in measuring, control and regulating circuits
Power circuits for electrical equipment used in automation engineering
Assembly lines, production lines, in all kinds of machines
Only for outdoor use within the indicated operating temperature range, with UV-protection

Product features

Designed for 5 million alternating bending cycles and travel distances up to 10 metres
Flame-retardant according IEC 60332-1-2
Low-adhesive surface
EMC-compliant

Norm references / Approvals

Core based on VDE 0245/0285
Sheath based on VDE 0245/0285
For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in layers with short lay lengths
PVC inner sheath, grey
Tinned-copper braiding
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)

Additional information

Weight N/A
Cores

2, 3, 4, 5, 7, 12, 18, 25, 34
Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16
Real Size

50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
